The Lockheed Martin "A380" that was never built

The iconic Airbus A380 may have been phased out now, after 12 years of being in service, but did you know, plans for a similar engineering marvel had been on the cards since the early 90s? Perhaps not!

Boeing has always wanted to build a competitor to rival the mighty A380. At around the same time, the Russians were also reported to have plans of building a double-decker featuring escalators.

A380 | Emirates

Lockheed Martin, as it would turn out, came up with an idea for a double-decker super transport aircraft that would be bigger than a 747, carry more passengers than an A380 and would have dominated the skies.

Airports, unlike today, had a slew of issues back in the 90s. Although air travel was on the rise, acquiring airport slots was getting increasingly difficult. Quite interestingly, airports started selling landing slot pairs for millions of pounds!

B747 | Britannica

Thus, according to Lockheed Martin, if the frequency of planes couldn't be increased, the next logical step would be to create bigger planes. Boeing had already started the trend of manufacturing massive jets like the B747 by then with Airbus trailing with the A340 series.

The company in 1996 thereby came up with the program- "Large Subsonic Transport"-  a series of designs for an aircraft that would be the natural evolution of the Boeing 747. This also came at a time when heavy-lift aircraft for the US military were approaching the end of their operational period thereby putting Lockheed right where it needed to be to win the contract.

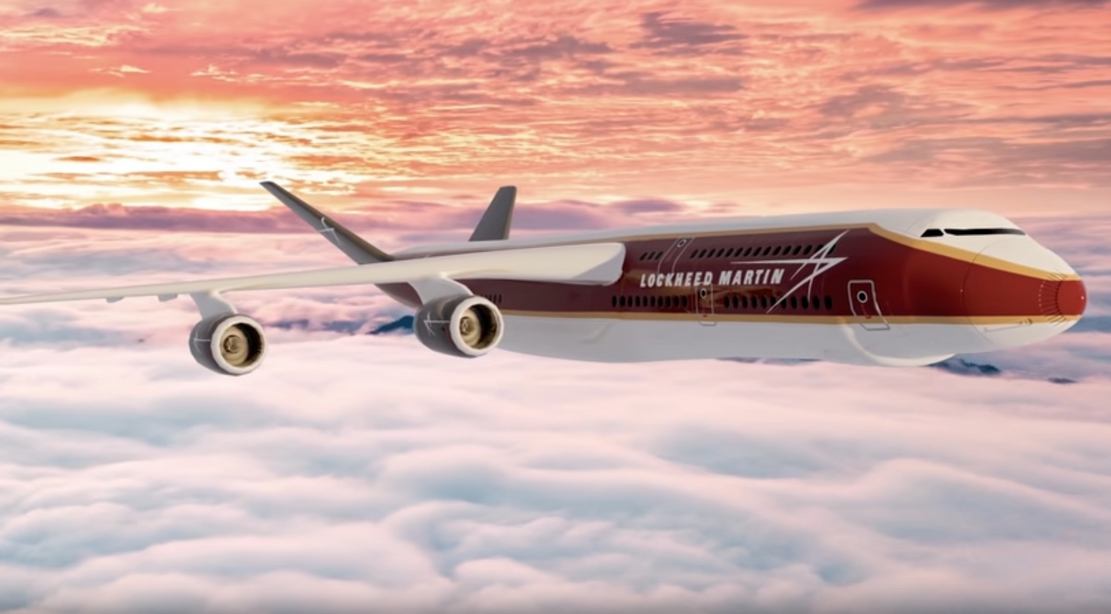

The Large Subsonic Transport, officially known as " Lockheed Very Large Aeroplane " was designed to carry around 800 passengers for long haul flights, as well as the possibility for it to be configured as a freighter. Additionally, it was to have a military application as well.

Lockheed Very Large Aeroplane

Wordless Tech

Tech and Specs

Take-off weight1.4 million pounds / 635 metric tonnesWingspan282 feet / 85 mLength262 feet / 79 mfoundandexplained.com

With a passenger capacity of 800-900 passengers, travellers would have ideally found themselves in a cabin around 17 seats across, or 3 – 4 – 3 – 4 – 3 configurations with four aisles and two decks. Aircraft today, have a maximum of 10 seats across and not more.

Additionally, it would also have foldable wingtips, much like the ones we see on the B777X today.

B777X foldable wingtips | Aerotime Hub

Lockheed Martin had also unveiled plans of a cargo version of the touted model. The model would have intermodal containers, very similar to the ones used on trains, boats and trucks. The very fact that this aircraft would still have space for accommodating 450 passengers on the upper deck even after holding 16 of the containers in the lower deck, goes to show the sheer size of the aircraft.

Shipping containers | Representative | Bankrate.com

Despite all the impressive features, the model still lacked drastically in terms of range, especially in comparison to its modern-day rivals. The Lockheed model only had a range of 3,200 nautical miles, and this is shockingly less when compared to the 7,730 nautical miles by B747. The Airbus A380 takes the centre stage again with a maximum range of  8,000 nautical miles. The massive plane by Lockheed was tentatively priced at $200-300 million USD in the 90s, which is equivalent to around half a billion dollars in 2020. (Cheaper than the A380 cost of USD 445 million).

Why did it never see the light of the day despite an impressive portfolio?

It's one thing to talk about it and another to actually implement it. Apparently, the company had neither the resources nor the know-how to build the plane. It became apparent that Lockheed would have to collaborate with other aerospace giants like Boeing and Airbus to bring the project to fruition at a total development cost of $18 billion US.

Other major setbacks included:

The massive vortex generated by such a massive aircraft would mean longer waiting times for preceeding and succeeding aircraft to take-off or land.The aircraft would sink immediately in case of ditching eventsThe entire demographic of airports would have to be altered with longer and wider runways and taxiways.The aircraft would be extremely noisyEmergency evacuation procedures would take a hit as the nearest emergency exit would be far away for travellors seated in the middle and worse, it wouldn't be meet today's FAA standards.

Ironically, the company wasn't entirely sure of how the design would work in the air, considering the architecture was entirely different from that of a conventional aircraft. As fate would have it, the project was finally shelved and never made it beyond design papers.

SOURCE(s)

COVER: Wordless Tech
