Wingtip Devices - what are the different types and how do they function?

Wings are an essential part of an airplane, producing the necessary lift and that's a given. Have you ever noticed though, they are never flat and are either angled or upward sloping?

The tips of airplane wings are adorned with all types of winglets, sometimes featuring a distinct curve, like the Airbus A350 or Boeing 787. Passenger jets without winglets are becoming increasingly rare.

So, what are winglets and what function(s) do they perform? Winglets, or Wingtip devices, are touted to help with fuel efficiency by reducing the drag caused by airflow patterns over the wingtip and increasing range for more efficient travel.

A brief history

Although been around since the early days of aviation, researchers at NASA are officially credited for the research and development of these innovative design features.

Dr. Richard Whitcomb | Baltimore Sun

Dr. Richard Whitcomb, an aerospace engineer at NASA Langley Research Center, tested winglets — vertical airfoils on the tips of wings — compared to longer wings in a wind tunnel. Whitcomb showed that the winglets would improve cruising efficiency by 6-9%; tests by the NASA Dryden Flight Research Center using a military version of the Boeing 707 showed an increase in mileage of 6.5% for the same amount of fuel.

How do they work?

Winglets are basically "mini-wings". Hence it is imperative to have an understanding of how wings work to grasp how they function.

 The wing shape generates lift by exerting downward pressure on the air mass it is travelling through, causing a pressure difference below the wing compared to above; there is less pressure on the upper surface of the wing and more on the lower surface.  This pressure difference, the air below the wings rolls up and wraps around the top of the wing, causing a whirlwind named a wingtip vortex.

Phys.org

Now, wingtip vortices are notorious for increasing drag and reducing lift that results in less flight efficiency and higher fuel costs. Winglets produce “lift” as well, but because they are tilted upwards, that lift results in forwarding movement inside the vortex and reduce the strength of that vortex.

There is, however, a trade-off though. As is with everything, winglets also add to the overall weight and drag- around 500 pounds on average. But all said and done, the aerodynamic benefits outweigh the additional weight and drag. That’s why most jetliners made today come from the factory with winglets.

Some common types of winglets

1. Raked

The Points Guy

Raked wingtips feature a “raked” shape by curving backwards. Many aeroplanes, including the Boeing 787, feature raked wingtips. In the case of the 787, those raked wingtips also have a slight upward curve

2. Canted

Wikimedia Commons

Canted winglets are short, upward-sloping wedges; they can be found on Airbus A330 and A340 aircraft and on the Boeing 747-400.  It’s believed that the use of canted wingtips increased the range of the Boeing 747-400 by over 3%. These winglets are likely to disappear from view as the current models of the A330 go out of production and new wing shapes are developed

3. Blended

Victor Tango Aviation

They feature a much smoother transition from the wing itself to the winglet, which produces additional efficiencies compared to a canted winglet or wingtip fence. Mostly seen on many models of the Boeing 737.

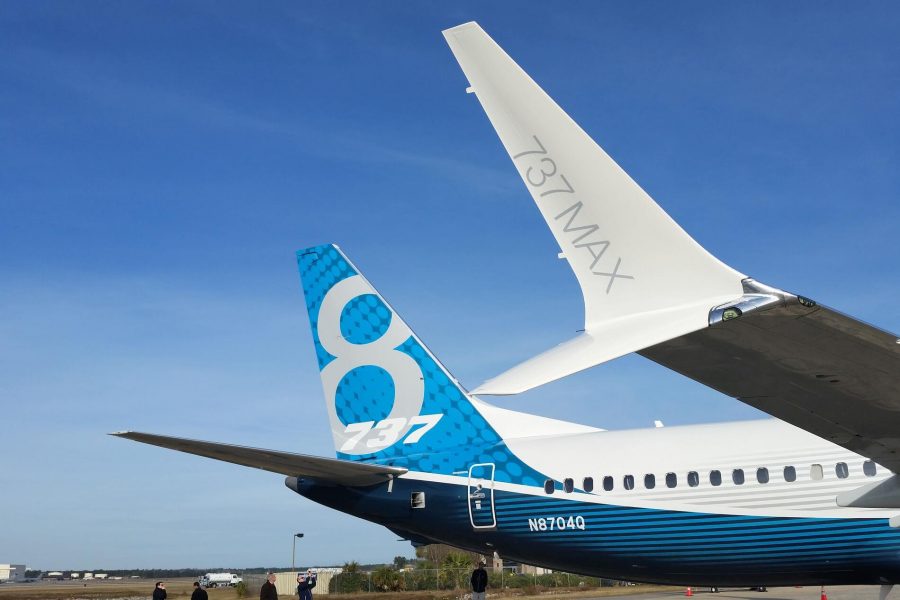

4. Winglets on the Boeing 737 MAX

Eurocontrol

The Boeing 737 MAX has winglets that look similar to the split-scimitar ones, but they are slightly different and come as standard equipment with every MAX

5. Split-scimitar winglet

Houston Chronicle

Found on many Boeing 737 aircraft, they are either delivered with new airplanes, or retrofit by Aviation Partners Boeing; the former appears on Boeing 737-900ERs flown by Delta, and the latter on many United Airlines 737s. They are a cross between a blended winglet and the wingtip fence, essentially blended winglets with an added airfoil below the wing.

6. Wingtip fences-An Airbus innovation

The small winglets that are seen on many Airbus variants are called wingtip fences. This type of winglet was meant to address the wingtip vortices that originate from the bottom of the wing, and therefore have a physical barrier below and above the wing. Spotting them is an easy way to differentiate between a Boeing 737 and an Airbus A320 family aircraft.

Did you know? The newer Airbus A320-family aircraft also sport blended winglets that look very similar to the winglets on the Boeing 737 — except they’re called "sharklets". The name is simply a unique way of marketing.

The Flying Engineer
